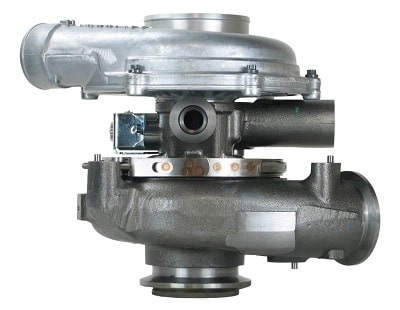

Description Ford 6.0L Powerstroke Turbocharger Fits 2003 models ONLY Options: Reman – Completely rebuilt and balanced. 1 year warranty New Garrett – Genuine Garrett Turbocharger with 2 year factory warranty Garrett PowerMax – Supports up to an additional 175 HP over stock with no sacrifice in drivability Fits 6.0L with production date before 9/29/2003 Cross Reference # 725390-9003S, 725390-9006S, 3C3Z-6K682-CCRM, 3C3Z-6K682-AARM, 3C3Z-6K682-BARM, 3C3Z-6K682-CBRM $300.00 Core Charge *Never pay a Core Charge if returned within 30 days* Please read our Core Policy PowerMax Specifications: – Model years 2003 6.0L Power Stroke Diesel engine – GT3788VA Turbo – Features the Garrett patented Advanced Variable Nozzle Turbine (AVNT) design for increased compressor flow and boost response – Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque – Patented integral electro-hydraulic actuation and proportional solenoid for infinitely variable control – Larger compressor wheel over stock increases maximum power range while keeping turbo speeds down for the same power output – Supports up to an additional 175 HP over stock with no sacrifice in drivability – Suitable as a performance upgrade or replacement for original equipment – Outline interchangeable for a perfect fit each and every time Compressor Wheel Inducer: 63.5mm Compressor Wheel Exducer: 88mm Compressor Wheel Trim: 52 Turbine Wheel Inducer: 72.5mm Turbine Wheel Exducer: 66.5mm Turbin Wheel Trim: 84 Turbine Housing: .90 Turbine Vanes: Altered for Higher Flow
