BX88393 RF Brake Controller Replacement for Patriot Brakes

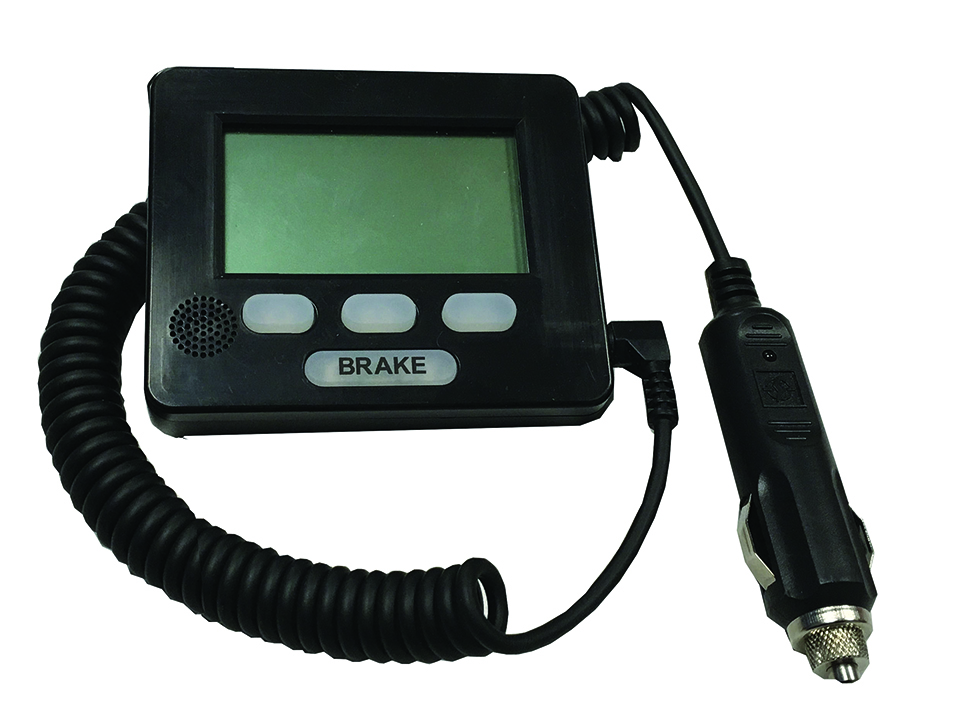

Specifications: The BX88393 RF Brake Controller Replacement for Patriot Brakes offers seamless wireless communication between the remote hand unit and the trailer power module, eliminating the need for a dash-mounted, hard-wired brake control. The LED display provides clear readings for trailer brake voltage, power output, and diagnostics. The remote hand control features a customizable “boost” system and plugs into any standard 12-volt power accessory adapter. This true proportional braking system operates efficiently in both forward and reverse with no need for manual level adjustments. Designed for up to six brakes, it supports 5th wheel and gooseneck applications with specific mounting requirements. The watertight trailer power module includes an 8′ sealed 7-way vehicle connector and uses standard RV blade-style 7-way truck and trailer connections. Powered through the 7-way cable from the tow vehicle, the system includes a power-saving mode to reduce battery drain when not in use. If the unit exceeds 20 amps during braking, auxiliary power to the trailer is temporarily shut down for safety
