Fixed Steel Access Ladder w/Pass Thru & Handrails

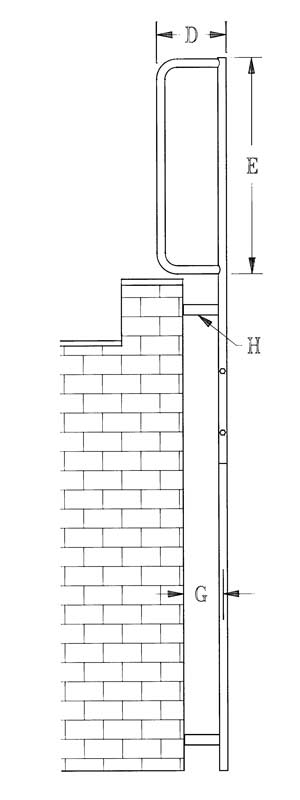

Fixed Steel Access Ladder, wall-mounted w/Pass Thru & Handrails Rung Specifications: 15⁄8” wide; 13 guage; tread grip pattern Tube Specifications: Outside diameter: 111⁄16” Inside diameter: 11⁄2” Wall thickness: .095″ Finish: Royal Blue Applications: Docks, Walls, Tanks, Fire Exits Inside clearance: 18″ Outside clearance: 213⁄8” Pass thru clearance: 24″ min. Handrail depth: 12″ Non-slip flat rungs Rung center to wall: 7.845″ Wall brackets   MODEL LADDER SIZE (I) OVERALL HT. WT. ACCESS LADDERS WITH PASS THRU & HANDRAILS (4 BRACKETS) SAH-3 3 ft. 7 ft. 39 lbs. SAH-4 4 ft. 8 ft. 44 lbs. SAH-5 5 ft. 9 ft. 49 lbs. SAH-6 6 ft. 10 ft. 53 lbs. SAH-7 7 ft. 11 ft. 58 lbs. SAH-8 8 ft. 12 ft. 62 lbs. SAH-10 10 ft. 14 ft. 71 lbs. ACCESS LADDERS WITH PASS THRU & HANDRAILS (6 BRACKETS) SAH-12 12 ft. 16 ft. 83 lbs. SAH-14 14 ft. 18 ft. 94 lbs. 2-PIECE ACCESS LADDERS WITH PASS THRU & HANDRAILS SAH-16 16 ft. 20 ft. 104 lbs. SAH-18 18 ft. 22 ft. 113 lbs. SAH-20 20 ft. 24 ft. 121 lbs.
